MP2000-X

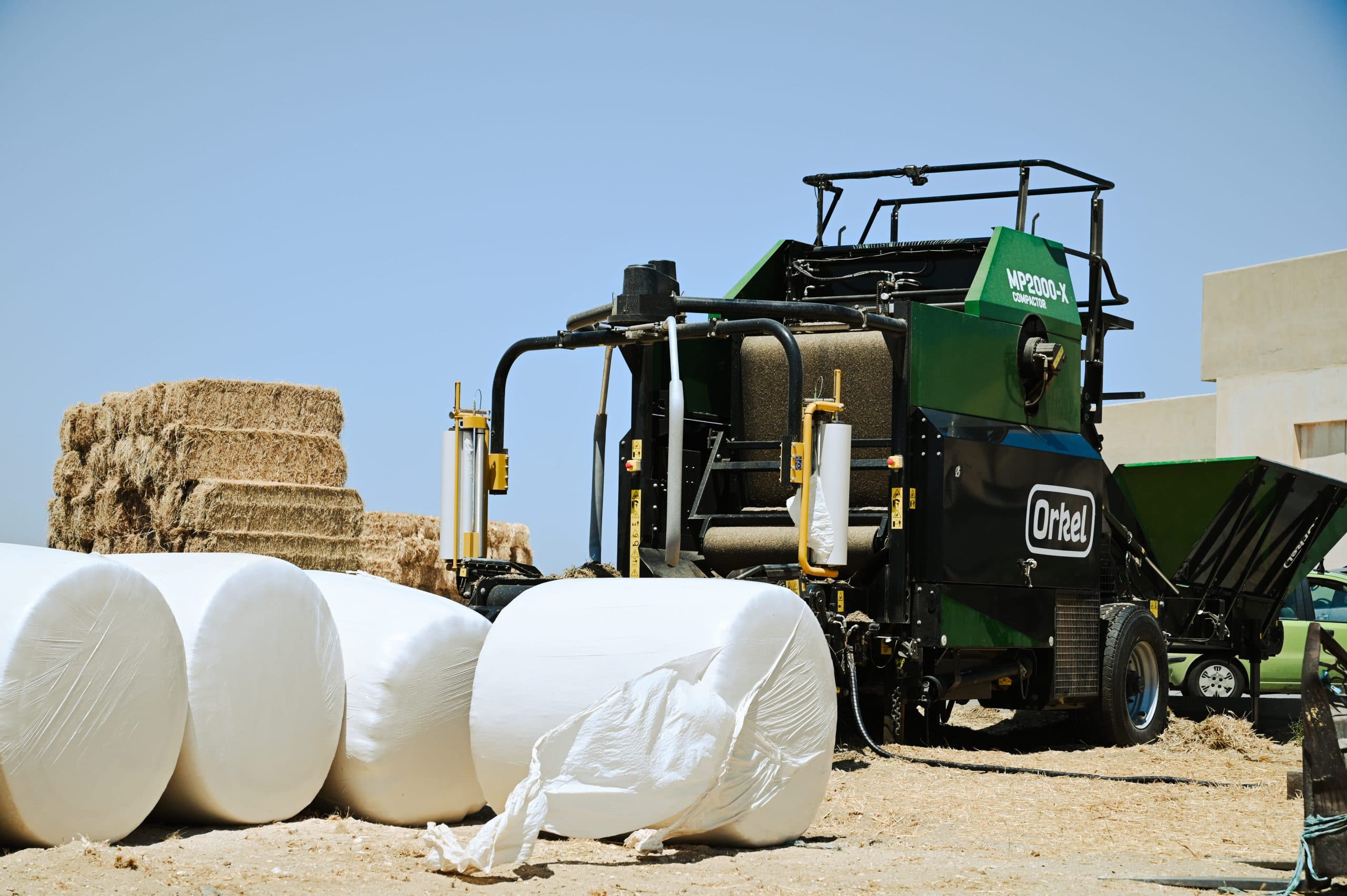

An MP2000-X behind four newly wrapped round bales lying on their curved side.

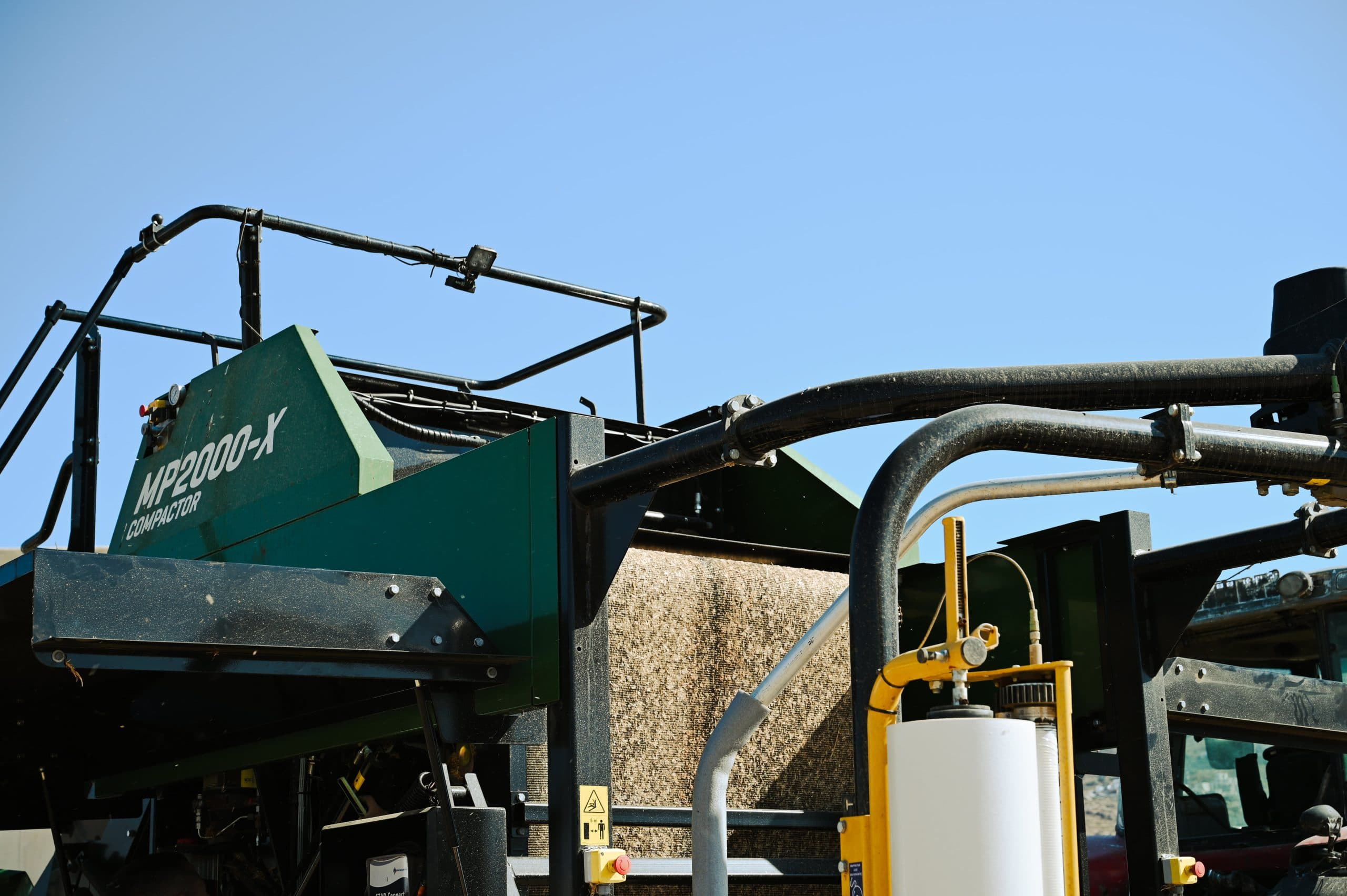

The platform of an MP2000-X compactor with a blue sky in the background.

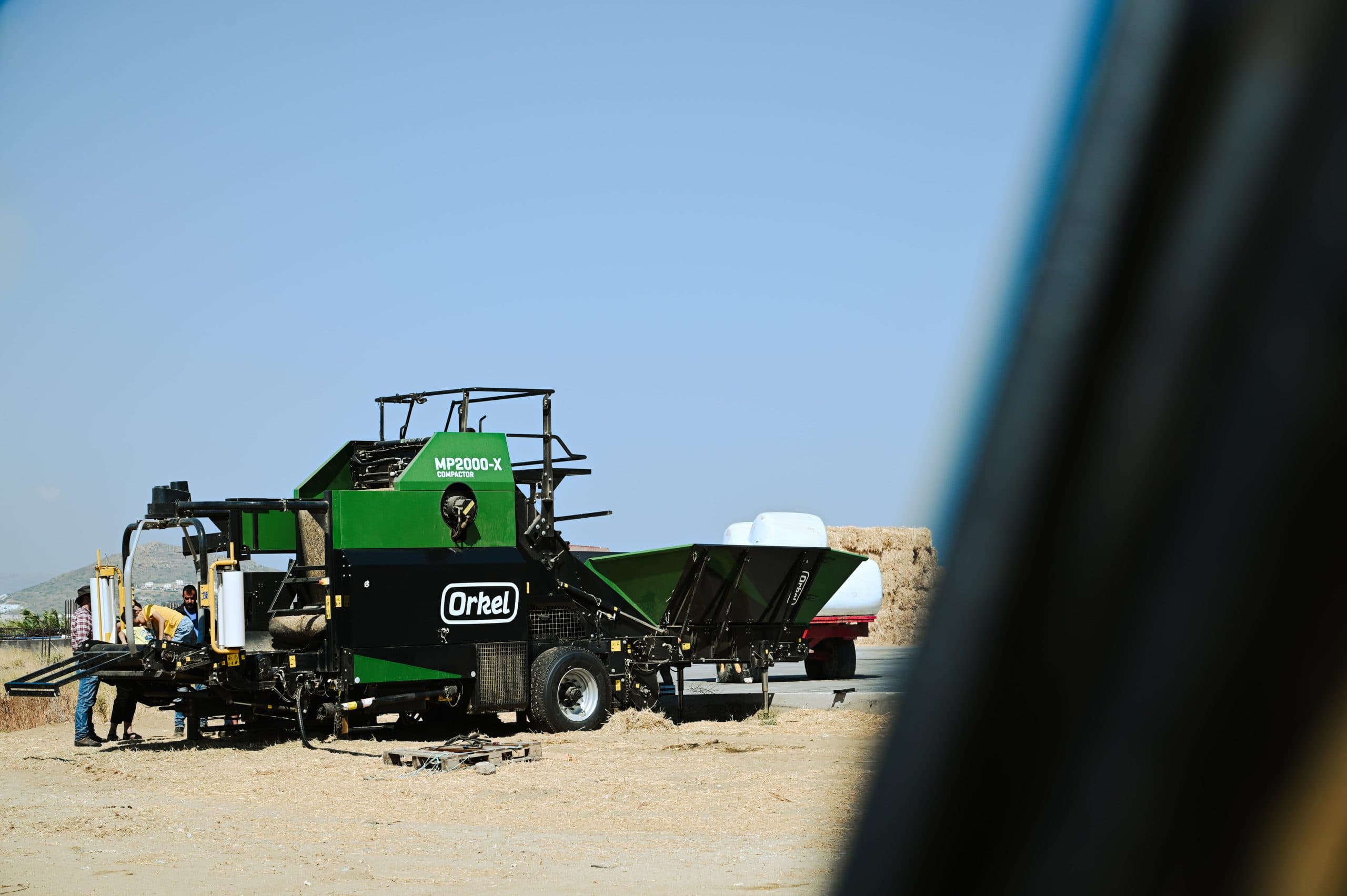

An MP2000-X compactor from afar, with a dark object in the foreground covering the right-hand side.

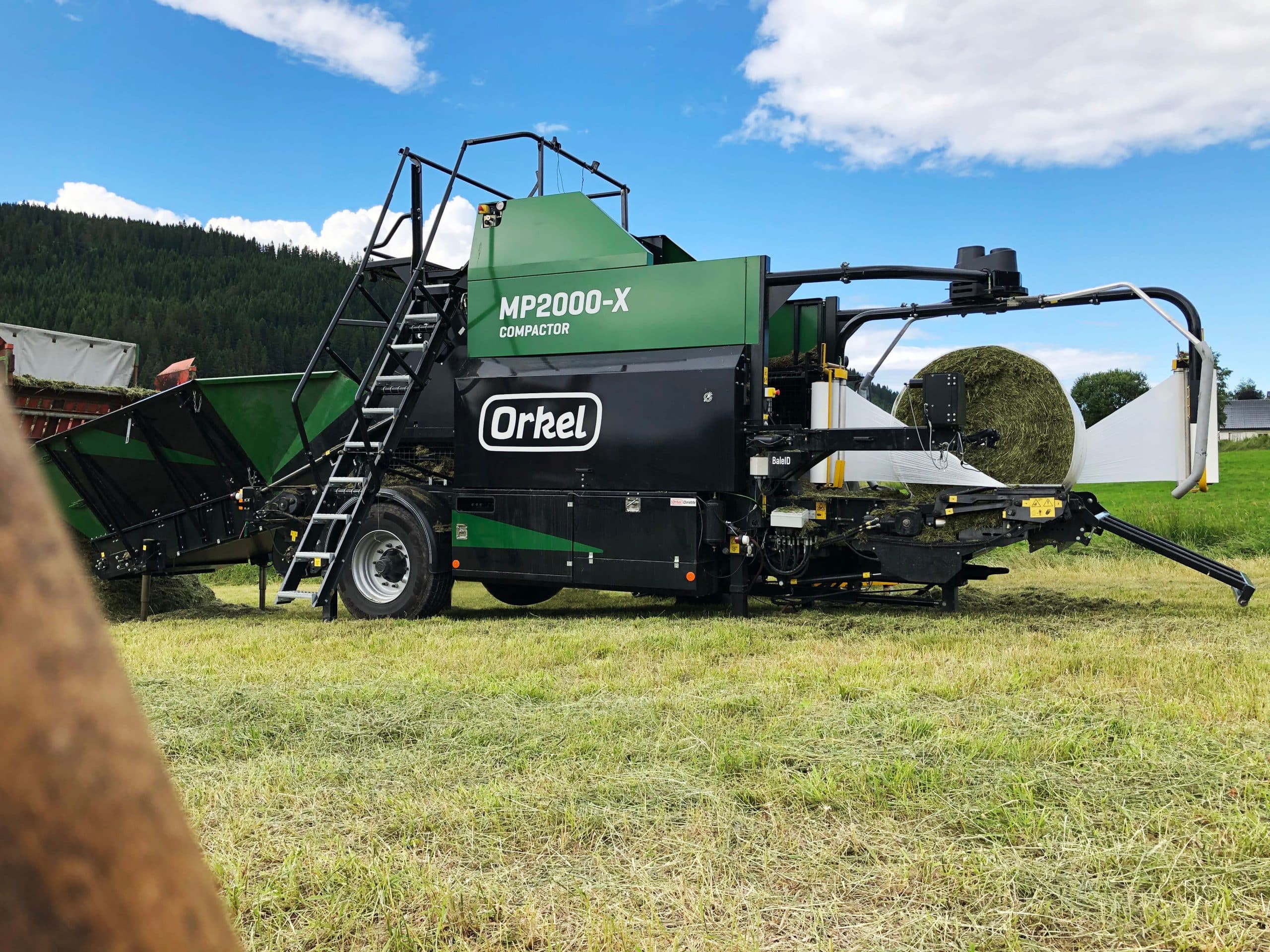

An MP2000-X compactor in a green field with the stairs and the chamber facing the camera.

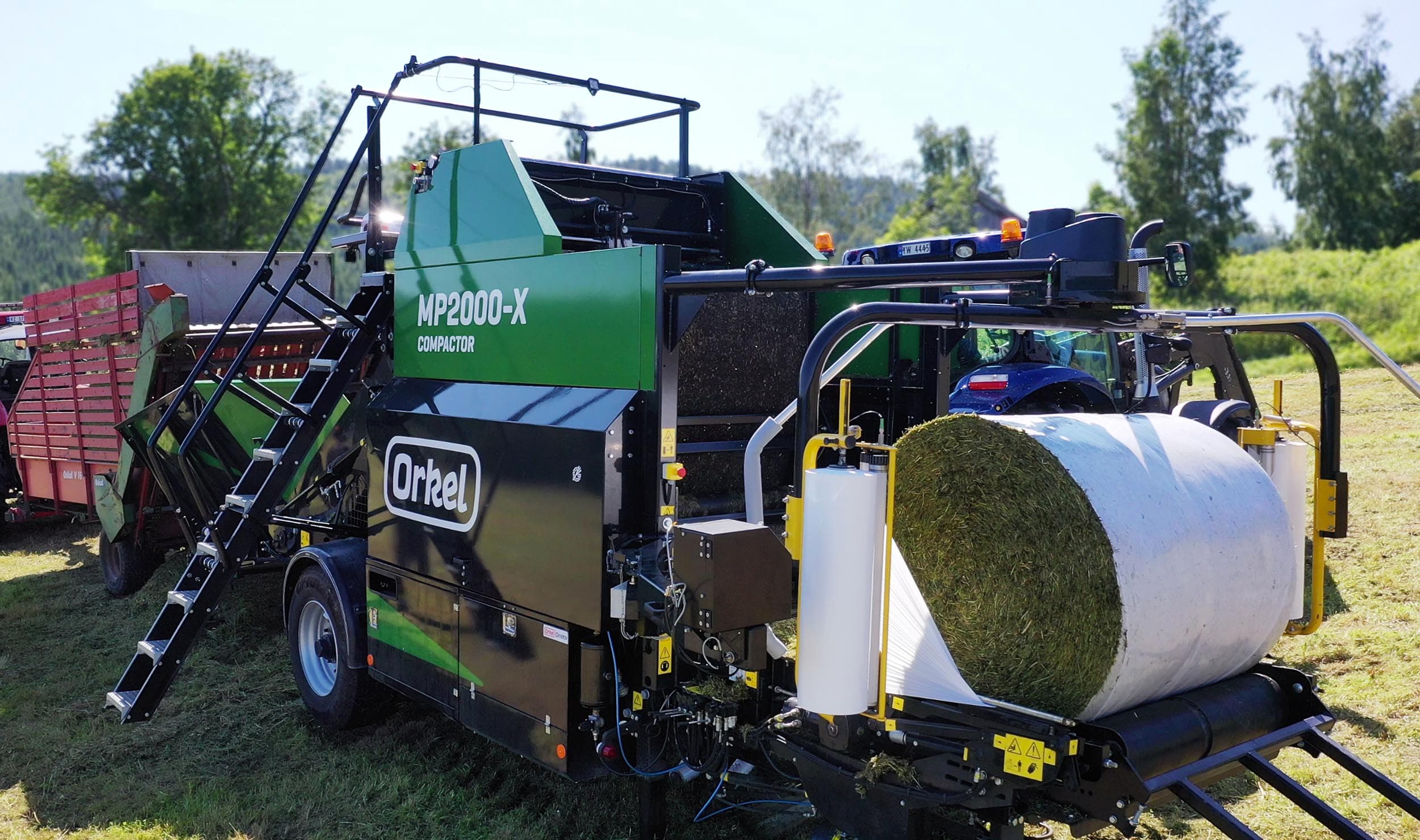

An MP2000-X in operation, with a half-wrapped grass bale on its wrapping table.

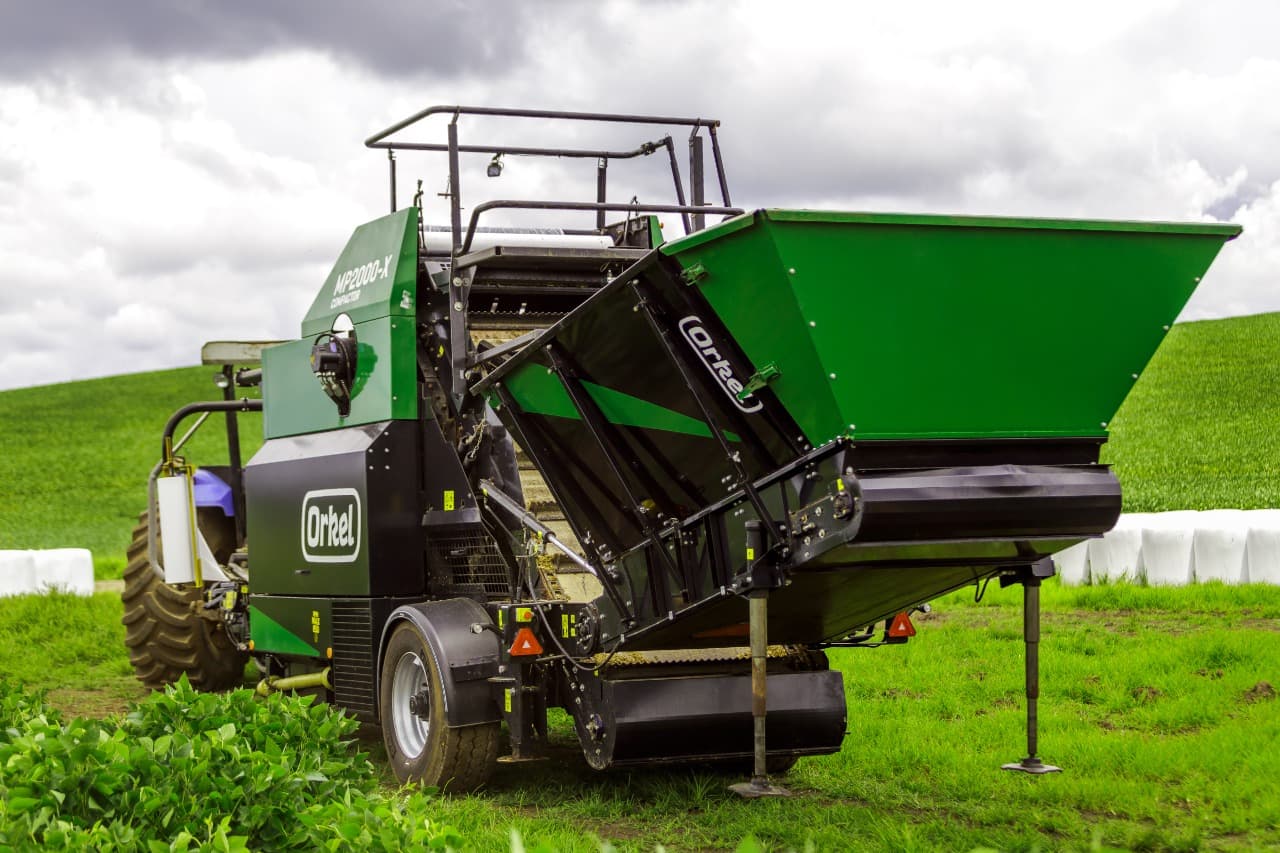

An MP2000-X compactor in a green field with its feeding table facing the camera.

The MP2000-X is a versatile compactor designed for baling a wide variety of bulk material and chopped masses.

Providing Orkel customers across the world a reliable and high-performing compaction, the MP2000-X model represents a resource-efficient and user-friendly alternative for conservation and logistics. Applying Orkel high-density technology, this compactor model is currently compatible with over 25 different materials and is still expanding to new areas of use.

We take great pride in offering highly customized machines, tailor-made to cover all needs. The MP2000-X bale diameter is ø115×120 cm, optimized for transportation in trucks and containers.

Get in touch

Miriam Gjønnes Karterud
Sales Manager, industry

Tel. +47 907 36 245
Peder Kvendset
Sales Director

Tel. +47 906 73 755

Important Functions

  • Generation X

    The new X-generation of Orkel compactors, including the MP2000-X, is designed with innovative features to increase the productivity and management of your baling operation.

  • Orkel Precision

    Compatible with our latest smart tech solution, Orkel Precision enables precision farming for every X-generation compactor owner. Implementing the complete package, you have a Production Management Tool, a Bale Traceability Tool, and a Bale Content Tool at your disposal.

  • Weighing System

    The MP2000-X compactor includes an implemented weighing system, saving your bale data for later analysis and fine-tuning of your baling operation.

  • Orkel Touch Control System

    The intuitive touch screen allows for easy operation and supervision of your MP2000-X. Features such as the wide viewing angle, screen brightness, and screen contrast offer optimal readability even in direct sunlight. Setting the machine to run automatically you are freed from manual labor, enabling you to shift focus to supervision and fine-tuning of the machine to accommodate to your needs.

The High-Density Baling Process

Click the “+” icons for more information about each stage in the high-density baling process.

An MP2000-X in a green field with a blue sky, in the middle of wrapping a grass bale.

Technical Details

Maximum capacity (bales/h) 66
Tractor power (min. PTO hp) 120
Chamber pressure (bar) 280
Bale size (cm) ø115 x 120
Volume (m³) 1,25m³
Bale weight (kg) 400-1400
Feed hopper F10
Drawbar Telescopic
Control system Touch
Weighing system Option
Transport length (mm) 8410
Transport height (mm) 3880
Transport width (mm) 2550
Operation length (mm) 10760
Operation height (mm) 4030
Operation width (mm) 3210
Net. weight (kg) 9500
Wrapper film width (mm) 750
Wide film width (mm) 1280

Documents

Versatility & Reliability: The Orkel MP2000-X compactor

The Dens-X’s capacity with regard to maize silage with about 60% moisture is between 400 – 600 tonnes per day, making it the machine with the highest daily silage baling capacity in the world.
