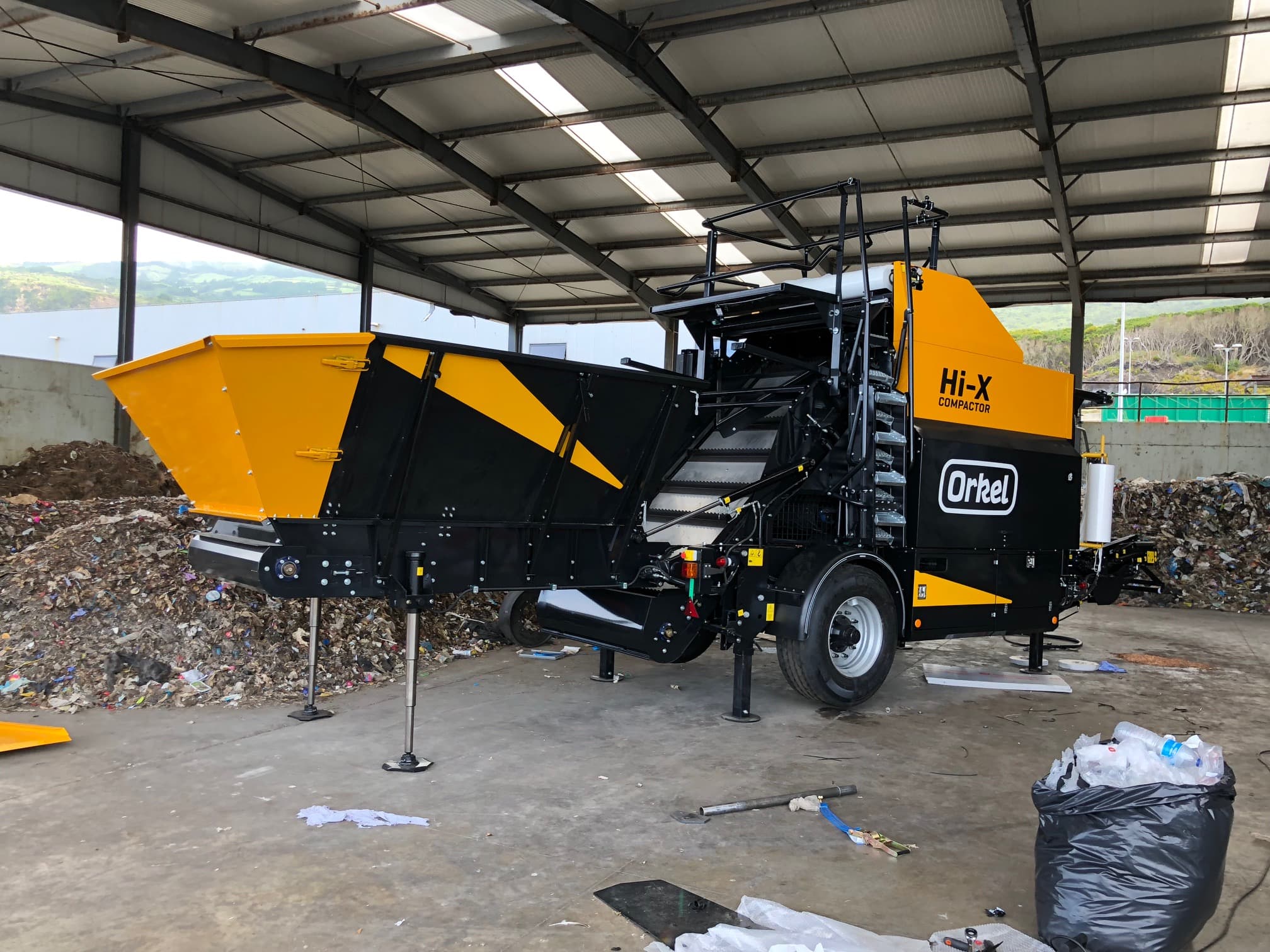

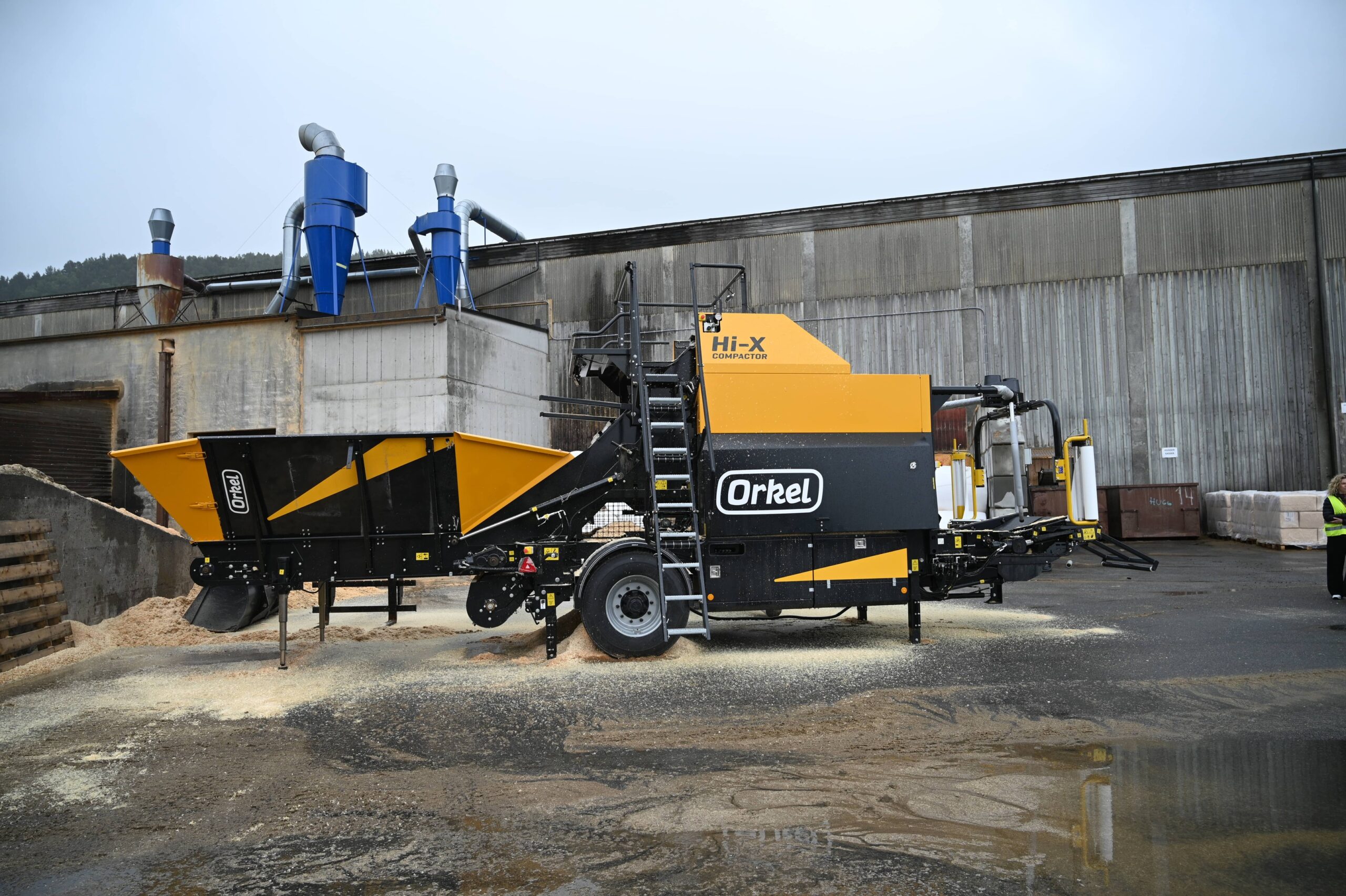

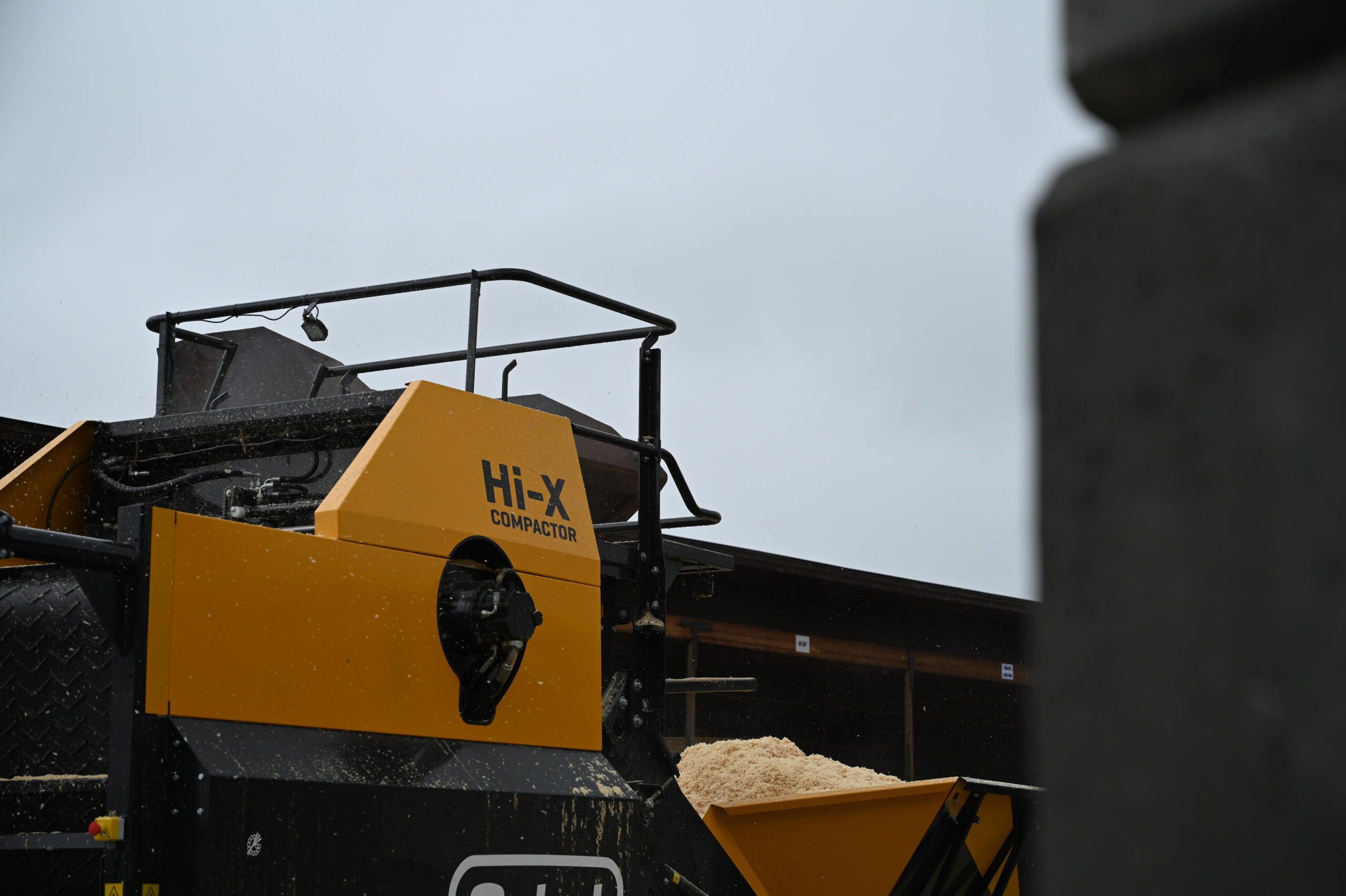

Hi-X
A versatile compactor designed for baling finer waste materials such as RDF and SRF.
Providing Orkel customers across the world a reliable and high-performing compaction, the Hi-X represents a resource-efficient and user-friendly alternative for storage of sorted and finely chopped waste types. Applying Orkel high-density technology, this compactor model is currently compatible with over 25 different materials and is still expanding to new areas of use.
We take great pride in offering highly customized machines, tailor-made to cover all needs. The Hi-X bale diameter is ø115×120 cm, optimized for transportation in trucks and containers.
Important Functions
Generation X
The new X-generation of Orkel compactors, including the Hi-X, is designed with innovative features to increase the productivity and management of your baling operation.
Orkel Precision
Compatible with our latest smart tech solution, Orkel Precision enables waste management precision for every X-generation compactor owner. Implementing the complete package, you have a Production Management Tool, a Bale Traceability Tool, and a Bale Content Tool at your disposal.
Weighing System
The X-generation of Orkel compactors include an implemented weighing system, saving your bale data for later analysis and fine-tuning of your baling operation.
Orkel Touch Control System
The intuitive touch screen allows for easy operation and supervision of the machine. Features such as the wide viewing angle, screen brightness, and screen contrast offer optimal readability even in direct sunlight. Setting the machine to run automatically you are freed from manual labor, enabling you to shift focus to supervision and fine-tuning of the machine to accommodate to your needs.
The High-Density Baling Process
Click the “+” icons for more information about each stage in the high-density baling process.
Feeding

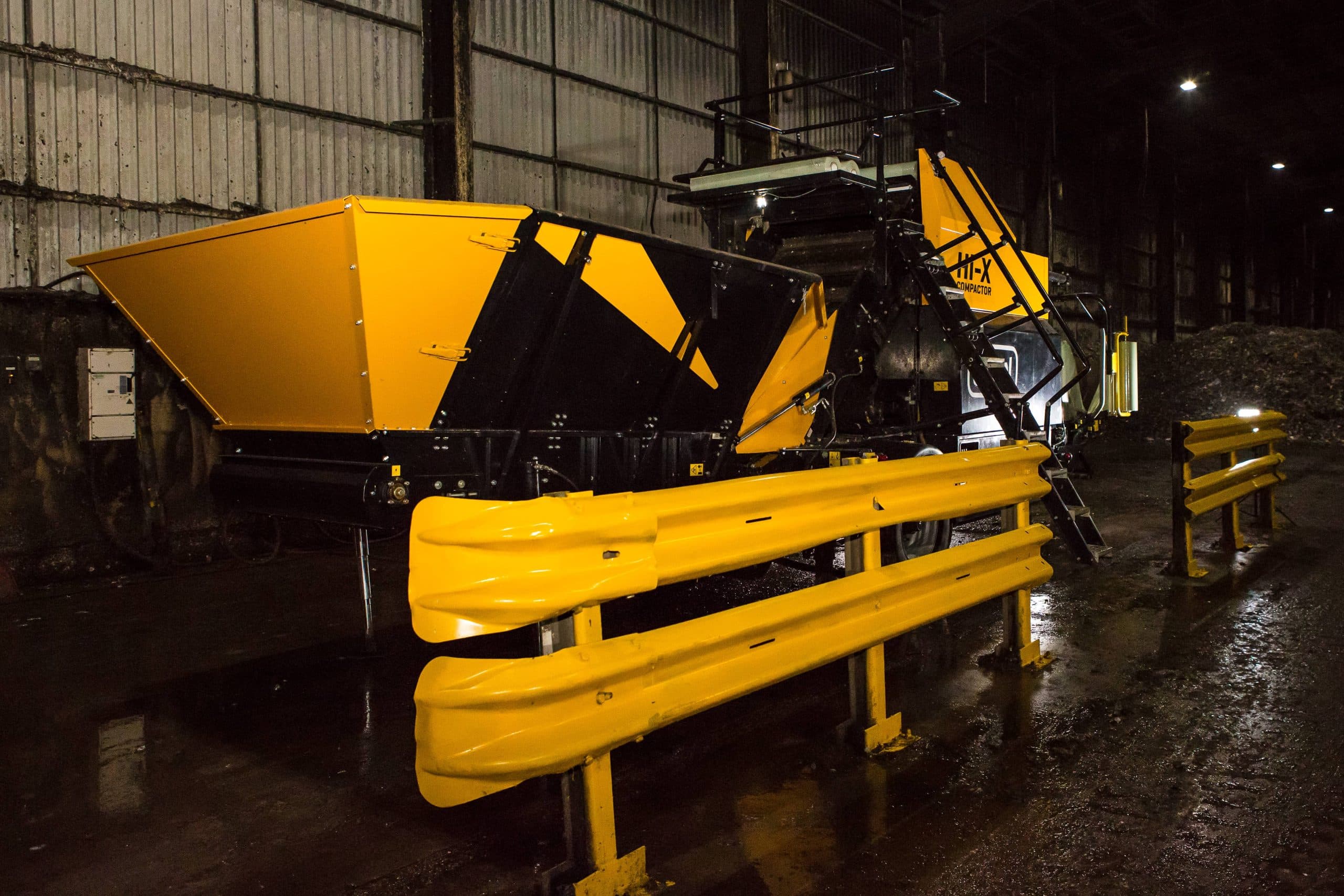

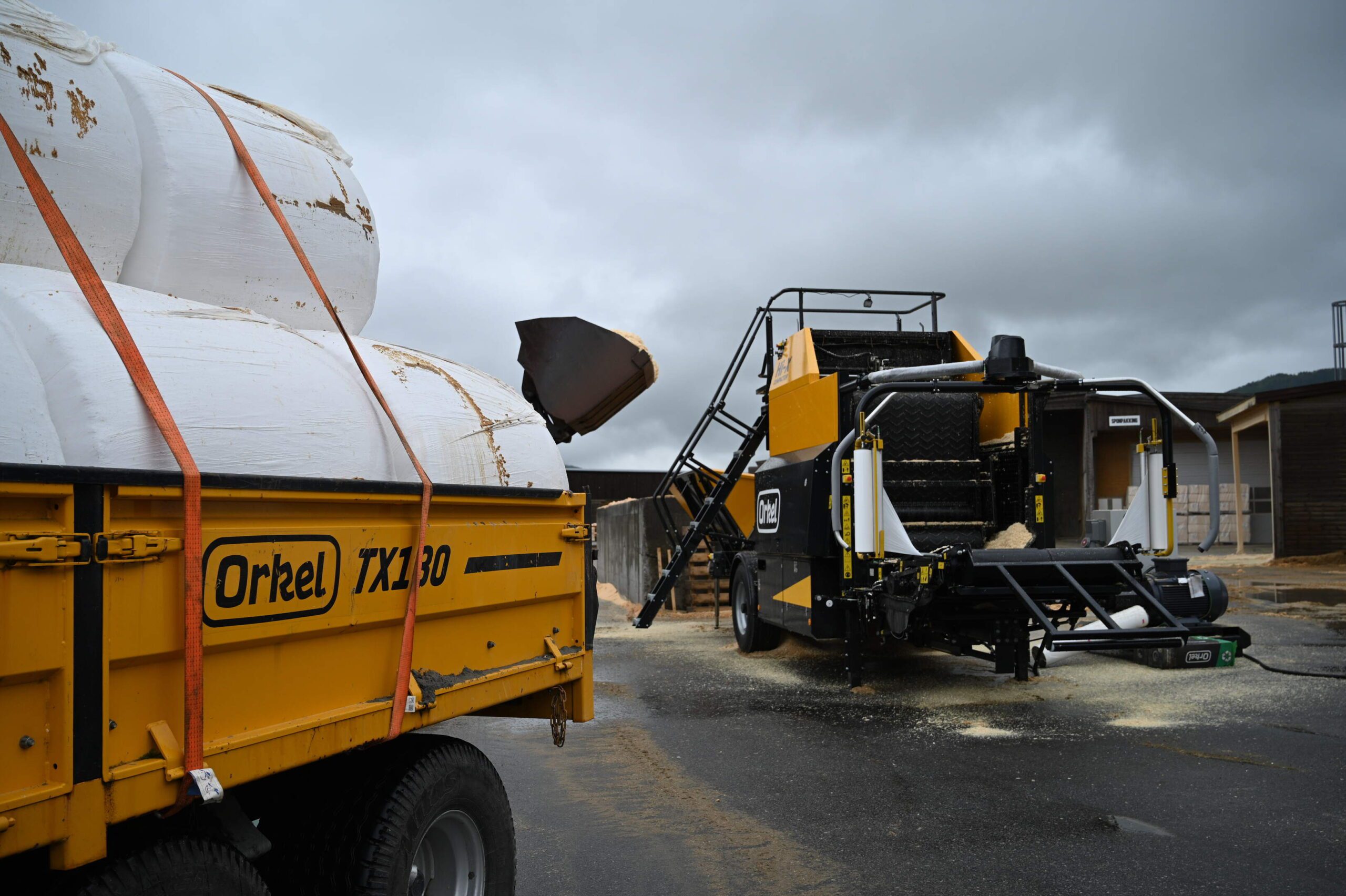

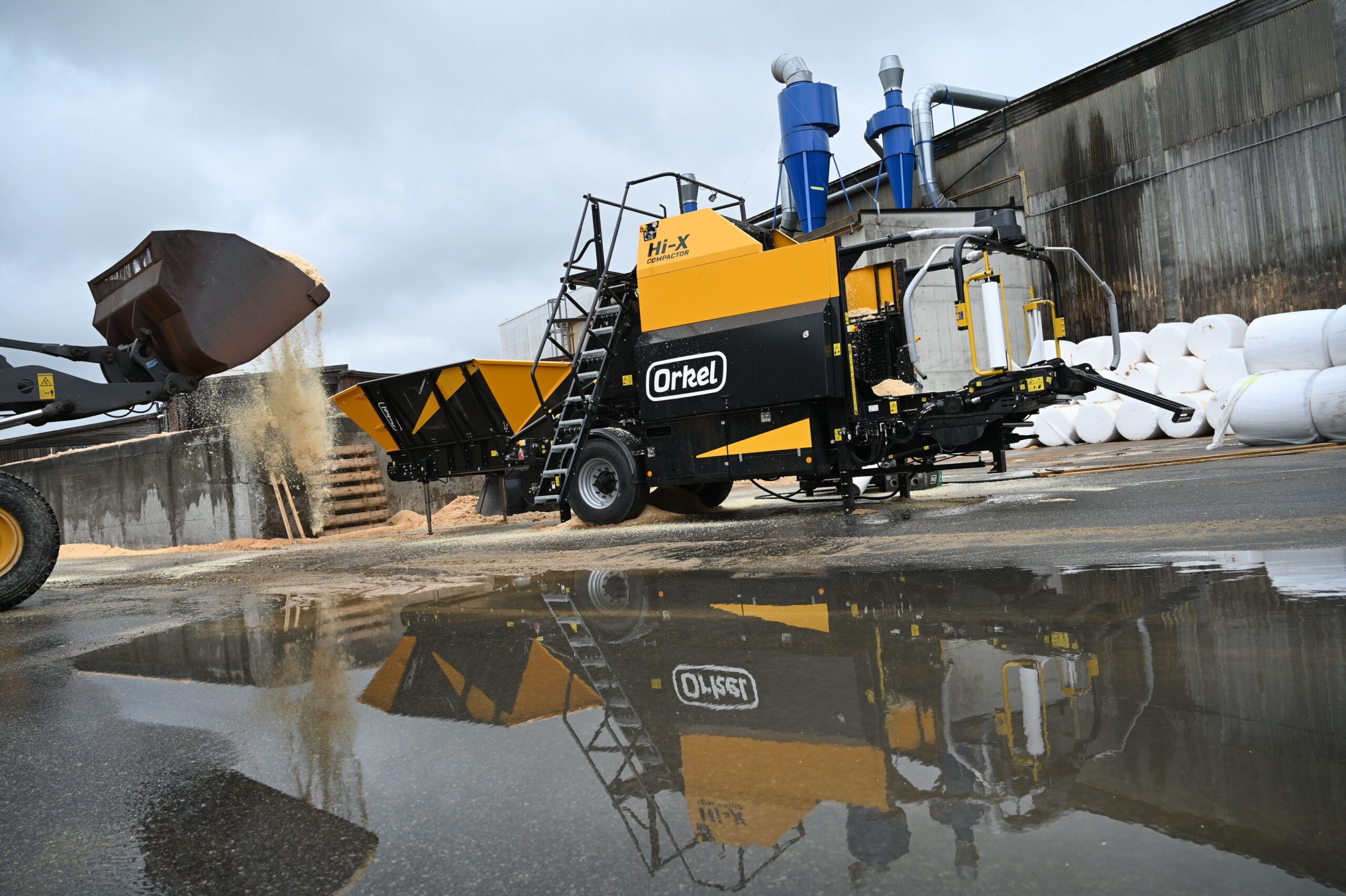

Your material is fed into the feed hopper on the compactor, which transports the material safely up the elevator and into the bale chamber using a proven conveyor system.
Compaction
The material is compacted to maximum density based on hybrid chamber technology. The Orkel technology avoids spillage of material to ensure minimal loss of resources.
Inner wrapping
After successful compaction, a wide film is wrapped around the bale to maintain shape and density before the bale exits the chamber towards the wrapping station.
Outer wrapping

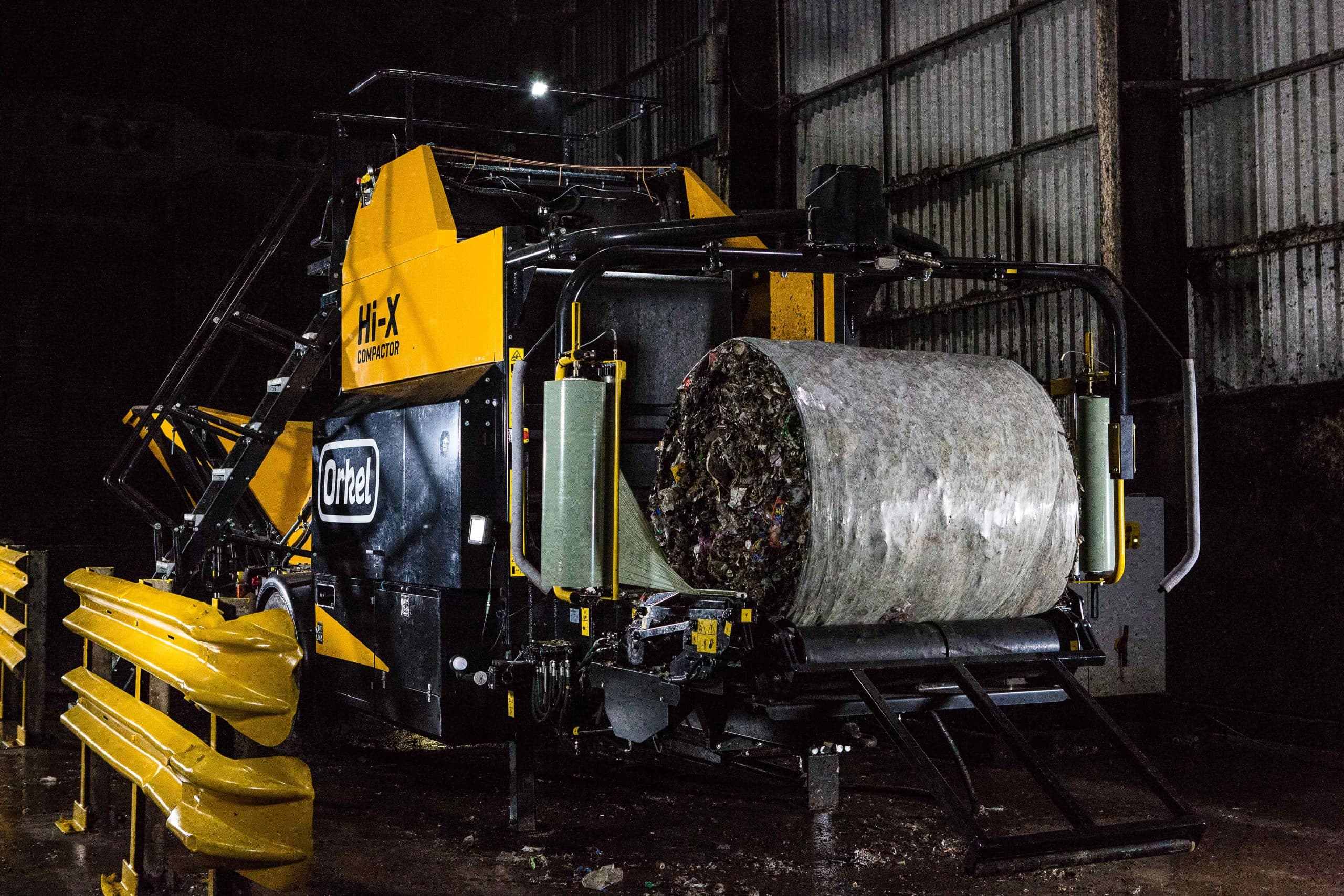

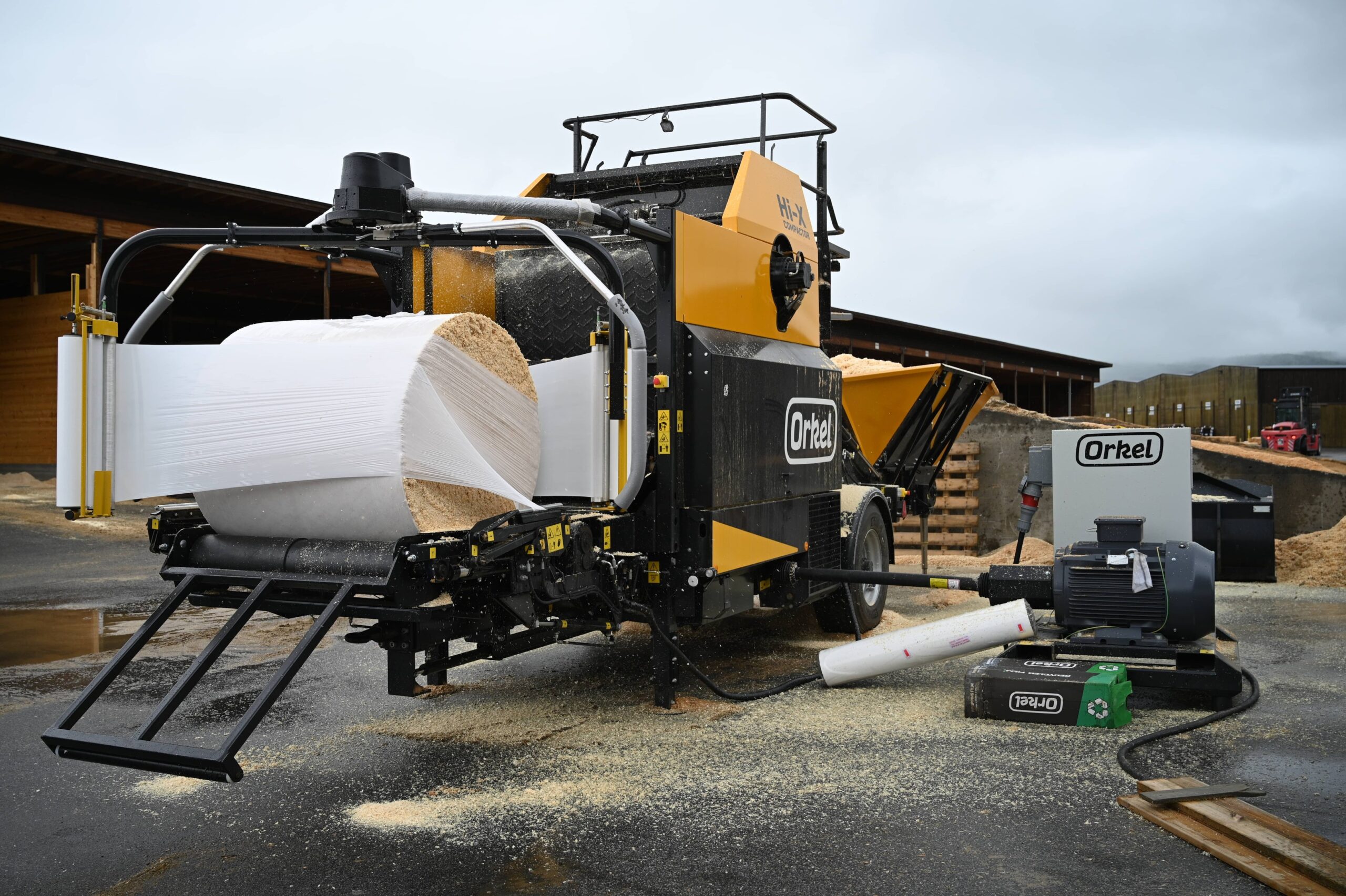

The compacted material is transported to – and safely placed – on the wrapping table, where it is tightly wrapped in plastic film into a compact, sturdy bale, ready for transport once it securely rolls off the table.
Technical Details
Maximum capacity (bales/h)55
Tractor power (min. PTO hp)120
Chamber pressure (bar)280
Bale size (cm)ø115 x 120
Volume (m³)1,25m³
Bale weight (kg)400-1400
Feed hopperF10
DrawbarTelescopic
Control systemTouch
Weighing systemOption
Transport length (mm)8740
Transport height (mm)4100
Transport width (mm)2550
Operation length (mm)10770
Operation height (mm)3900
Operation width (mm)3710
Net. weight (kg)9850
Wrapper film width (mm)750
Wide film width (mm)1280
