Dens-X
A high-capacity, high-efficiency compactor for the big baling jobs!
Take your baling to new heights with the Orkel Dens-X compactor! The Dens-X model has a unique feed hopper solution with supreme capacity, as the patented F25 feed hopper enables easy access and fast unloading from trailers. A tipper flip prevents spillage of your bulk material, and the full width belts provide optimal material flow. Together, the distinctive features of the Orkel Dens-X model create a unique compactor model in terms of baling capacity and reception of material.
In line with other Orkel models, the Dens-X compactor is currently compatible with over 25 different materials and is still expanding to new areas of use.
Important Functions
Rapid Rig&Wrap
The F25 feed hopper patent enables a smooth transition from transport to operation within minutes.
Generation X
The new X-generation of Orkel compactors, including the Dens-X, is designed with innovative features to increase the productivity and management of your baling operation.
Orkel Precision
Compatible with our latest smart tech solution, Orkel Precision enables precision farming for every X-generation compactor owner. Implementing the complete package, you have a Production Management Tool, a Bale Traceability Tool, and a Bale Content Tool at your disposal.
Weighing System
The X-generation of Orkel compactors include an implemented weighing system, saving your bale data for later analysis and fine-tuning of your baling operation.
Orkel Touch Control System

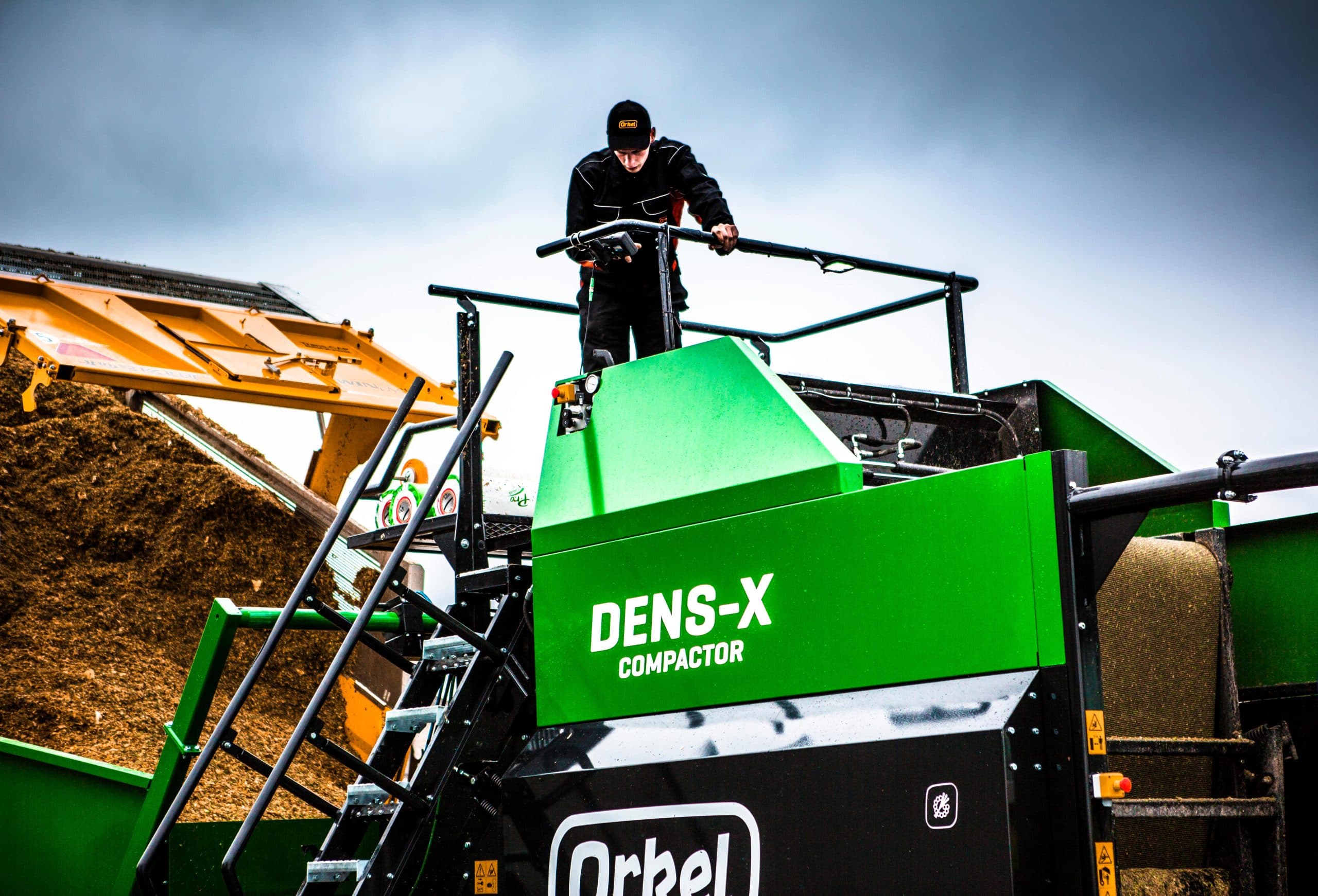

The intuitive touch screen allows for easy operation and supervision of the machine. Features such as the wide viewing angle, screen brightness, and screen contrast offer optimal readability even in direct sunlight. Setting the machine to run automatically you are freed from manual labor, enabling you to shift focus to supervision and fine-tuning of the machine to accommodate to your needs.
High Capacity

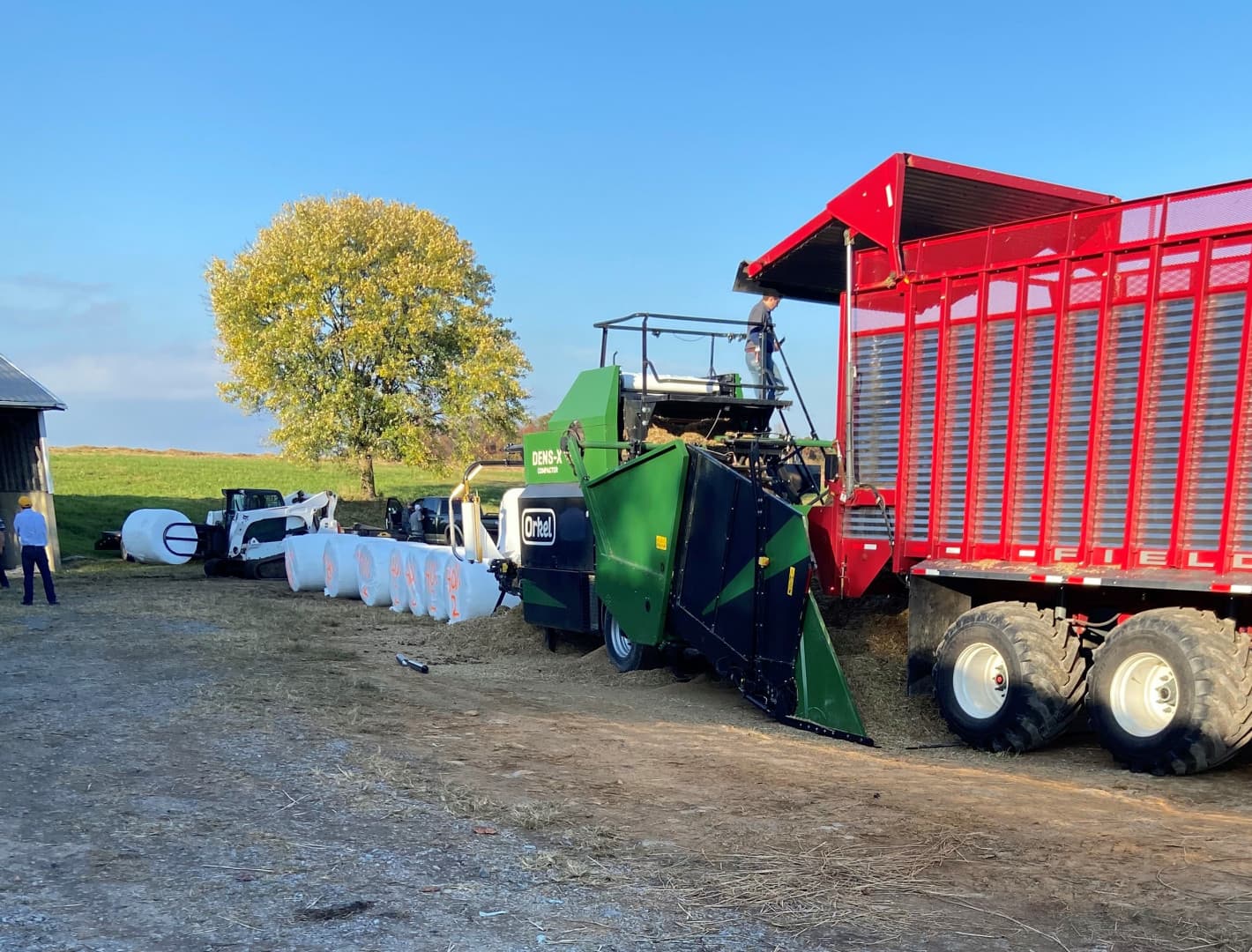

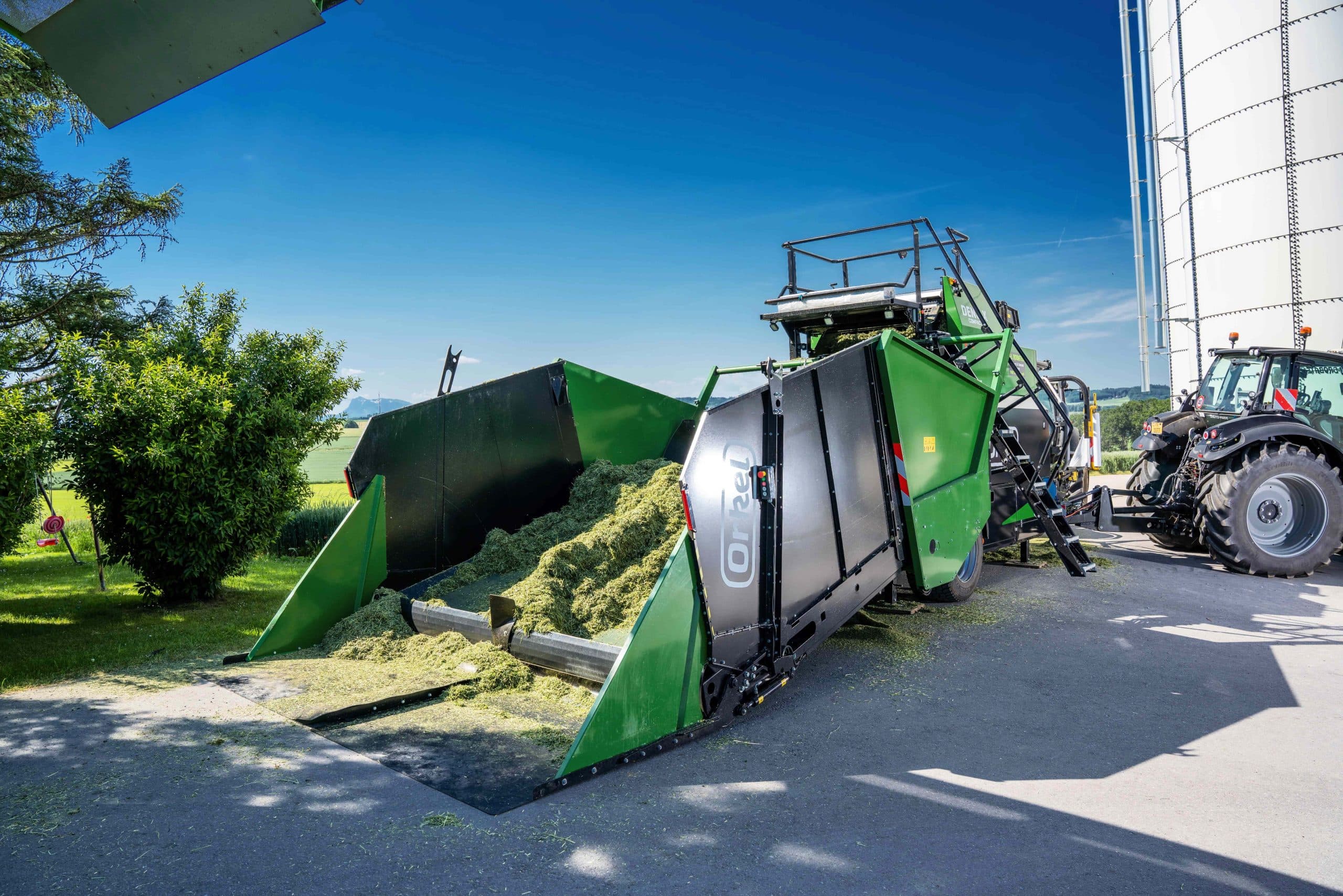

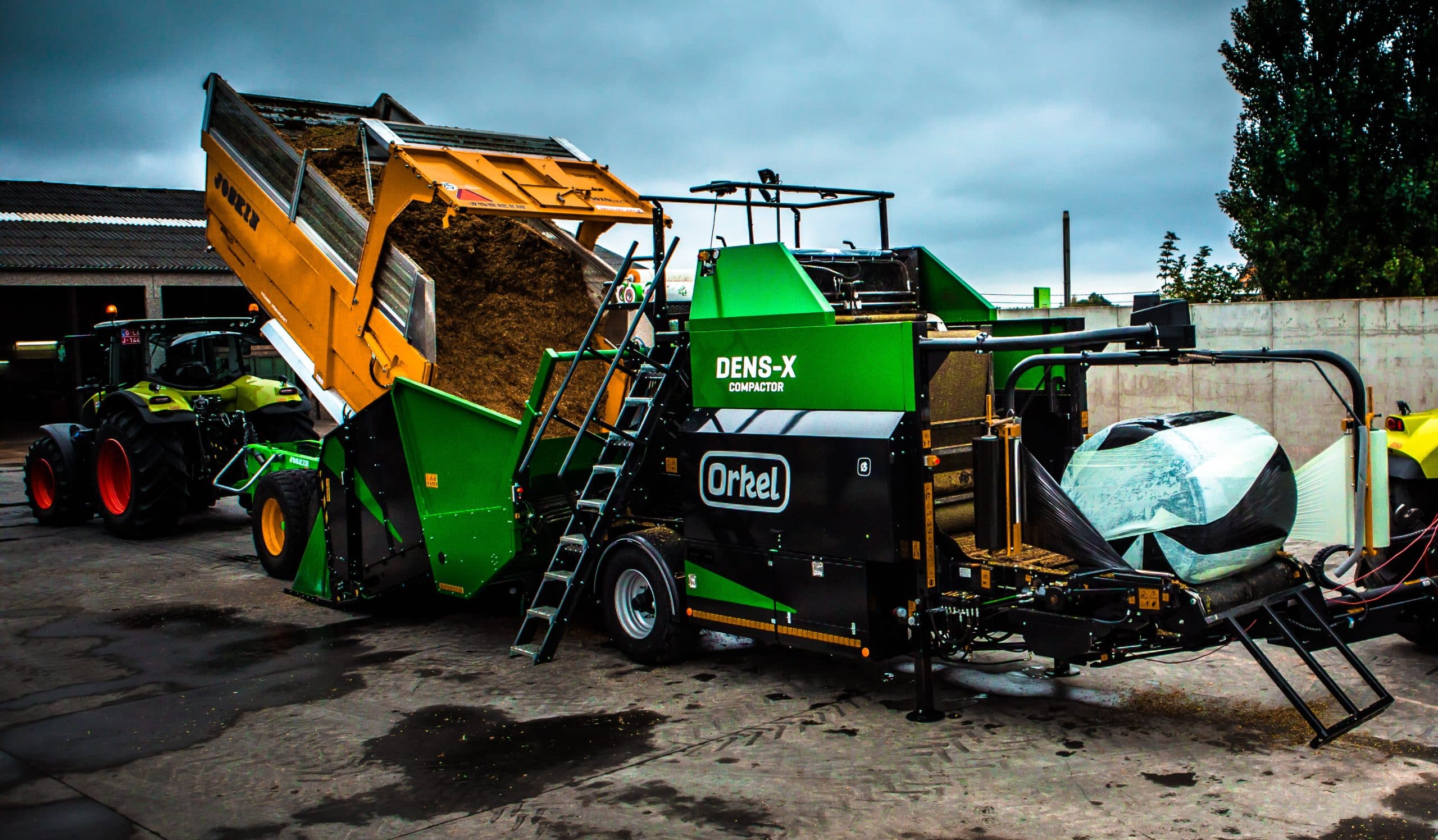

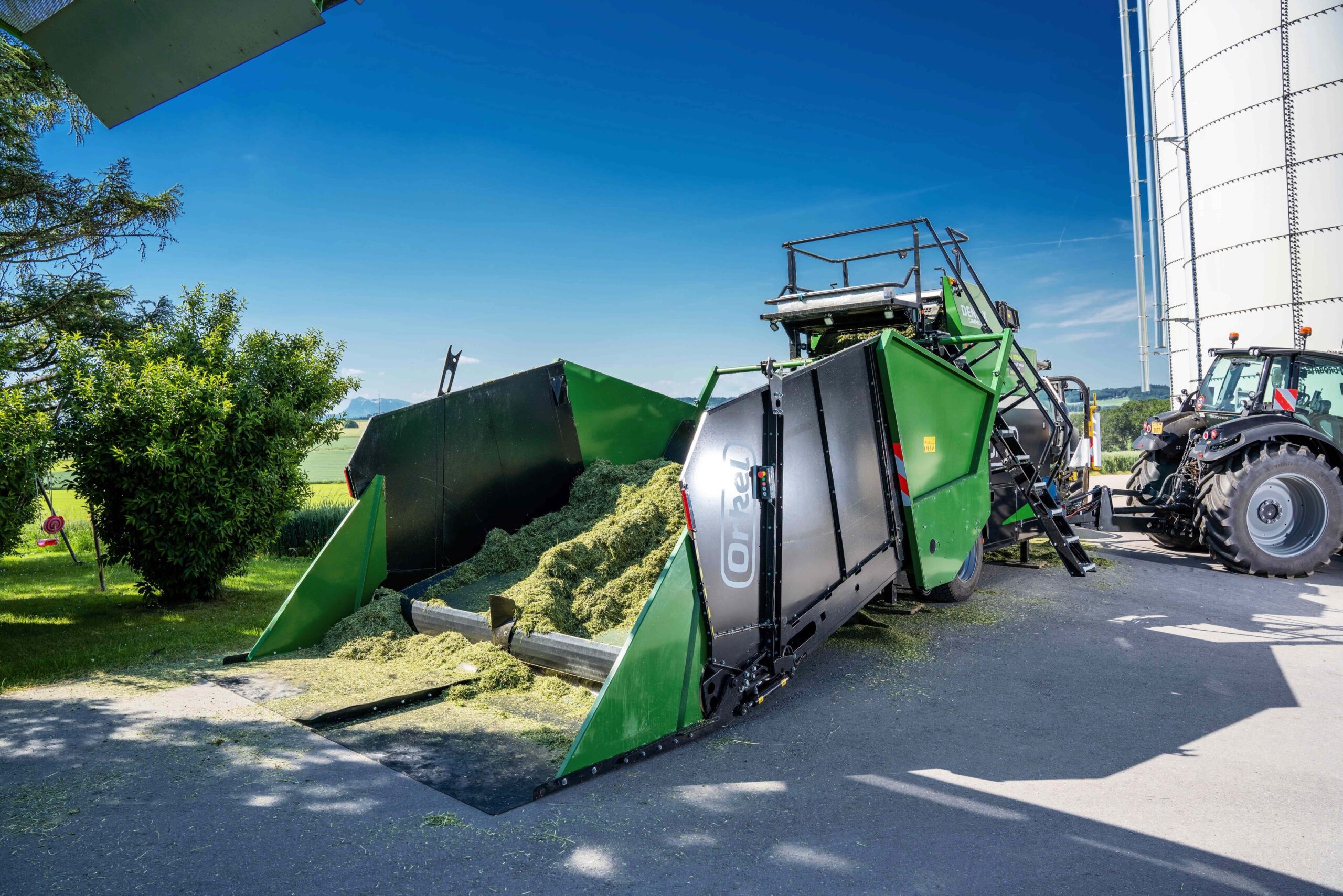

The high material capacity of the F25 feeding table enables easy access and fast unloading from trailers. A tipper flip prevents spillage of bulk material and the full width belts assure optimal material flow.
The High-Density Baling Process
Click the “+” icons for more information about each stage in the high-density baling process.
Feeding
Your material is fed into the feed hopper on the compactor, which transports the material safely up the elevator and into the bale chamber using a proven conveyor system.
Compaction
The material is compacted to maximum density based on hybrid chamber technology. The Orkel technology avoids spillage of material to ensure minimal loss of resources.
Inner wrapping

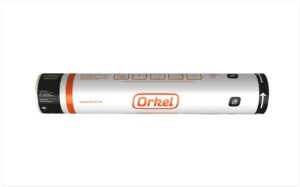

After successful compaction, a wide film is wrapped around the bale to maintain shape and density before the bale exits the chamber towards the wrapping station.
Outer wrapping
The compacted material is transported to – and safely placed – on the wrapping table, where it is tightly wrapped in plastic film into a compact, sturdy bale, ready for transport once it securely rolls off the table.
Technical Details
Maximum capacity (bales/h)66
Tractor power (min. PTO hp)120
Chamber pressure (bar)280
Bale size (cm)ø115 x 120
Volume (m³)1,25m³
Bale weight (kg)400-1400
Feed hopperF25
DrawbarTelescopic or Flexible
Control systemTouch
Weighing systemOption
Transport length (mm)9650
Transport height (mm)3900
Transport width (mm)2380
Operation length (mm)12420
Operation height (mm)3900
Operation width (mm)4470
Net. weight (kg)11540
Wrapper film width (mm)750
Wide film width (mm)1280
The Dens-X’s capacity with regard to maize silage with about 60% moisture is between 400 – 600 tonnes per day, making it the machine with the highest daily silage baling capacity in the world.
Johan Burger Marais
Director, Kameeldrift Voere
